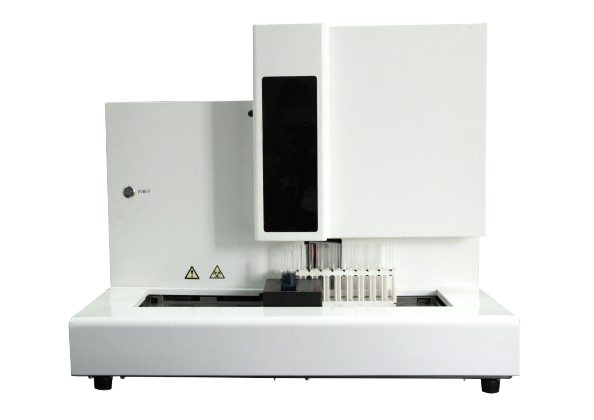

sedimax3000 Fully Automatic Urine Sediment Analyzer – Technical Specifications
Core Technology
The sedimax3000 utilizes advanced digital flow imaging microscopy combined with pattern recognition algorithms to deliver precise urine sediment analysis. Its multi-channel optical system provides laboratory-grade results without relying on artificial intelligence.
Key Features
-
High-resolution digital microscopy (400x magnification)
-
Advanced image processing algorithms for particle classification
-
Industry-leading 4-channel flow cell technology
-
Precision auto-focus system for consistent imaging
-
Rule-based particle recognition system
Technical Specifications
Analysis Parameters
| Category | Detectable Elements |
|---|---|
| Cells | RBCs (normal/dysmorphic), WBCs, epithelial cells |
| Casts | Hyaline, granular, cellular casts |
| Crystals | Calcium oxalate, uric acid, triple phosphate |
| Other | Bacteria, yeast, sperm, mucus, contaminants |
Performance Metrics
| Parameter | Specification |
|---|---|
| Throughput | 120 samples/hour |
| Sample Volume | 3mL (minimum) |
| Sensitivity | 5 particles/μL |
| Accuracy | >95% correlation with manual microscopy |
| Precision | CV<10% |
| Carryover | <0.05% |
Optical System
-
High-resolution digital camera (1.2μm/pixel)
-
Automated focus adjustment
-
Multi-angle illumination
-
400x magnification
Data Management
-
200,000 result storage capacity
-
Image archiving for all detected particles
-
Customizable report formats
-
LIS/HIS connectivity
Workflow Advantages
-
Direct loading of uncentrifuged samples
-
Continuous processing of 60 samples
-
Automatic QC verification
-
Standardized reporting in μ/L and HPF
Physical Specifications
| Characteristic | Value |
|---|---|
| Dimensions | 660×440×570mm |
| Weight | 33kg |
| Power | AC 220V ±10%, 50/60Hz |
| Environment | 15-35°C, ≤75% RH |
