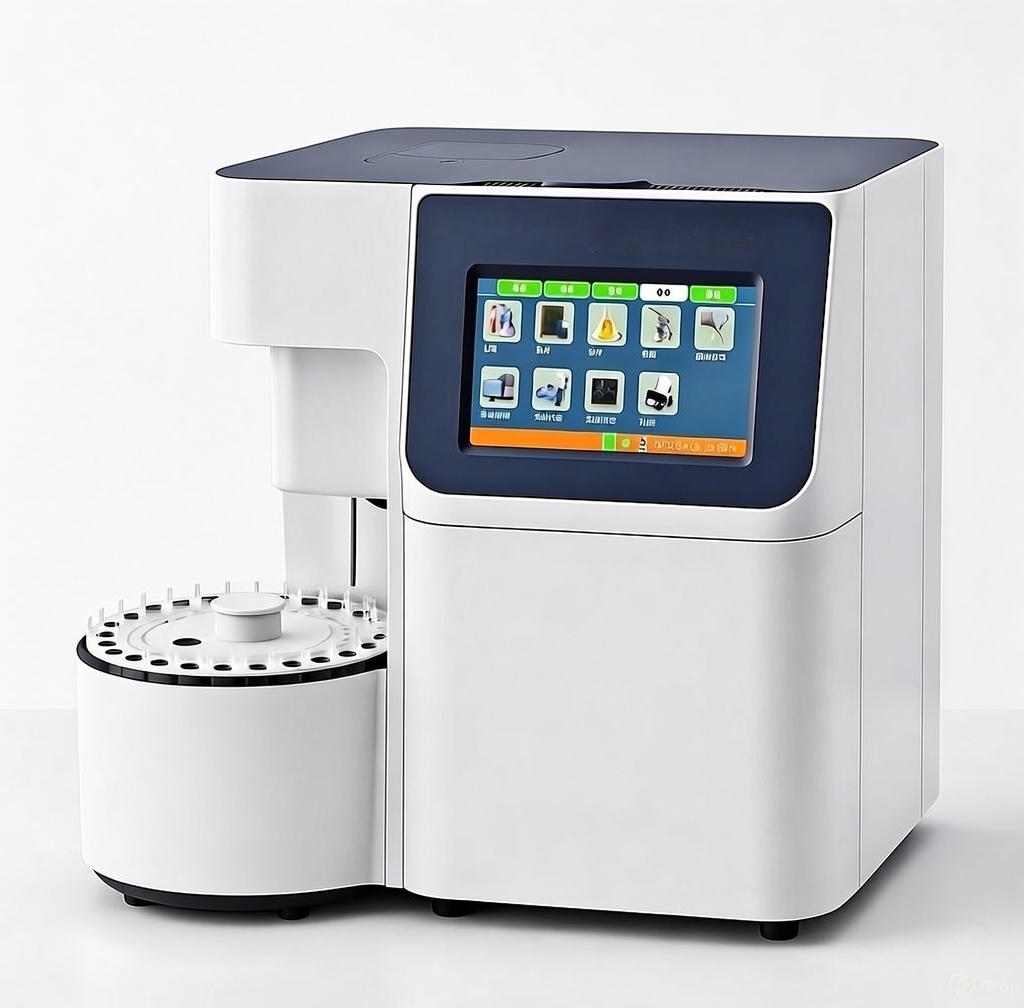

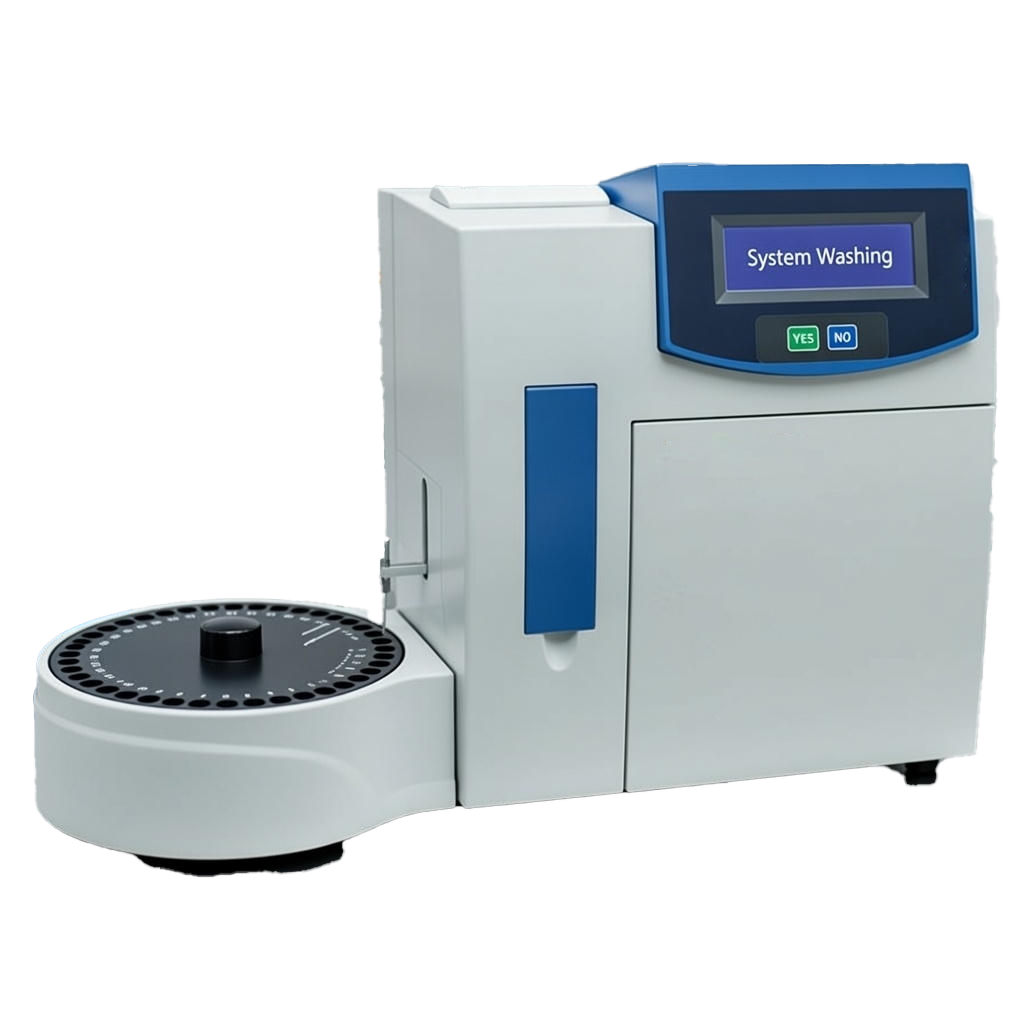

Electrolyte Analyzer
Model:EM2800
SKU00007
Key Advantages
- User-Friendly: Touchscreen interface with intuitive software.
- Efficient Workflow: High throughput (60 tests/hour) with minimal sample volume.
- Low Maintenance: Robust fluid tubing system and electrode design.
- Accurate Results: ISE technology ensures precise measurements.
- Flexible Configurations: Multiple models tailored to clinical needs.
Ideal for clinics, hospitals, and labs requiring fast, reliable electrolyte analysis with customizable options
-
EM2800 Electrolyte Analyzer: Organized Specifications
General Specifications
- Principle: Ion Selective Electrode (ISE) direct measurement.
- Sample Types: Whole blood, serum, plasma, diluted urine.
- Sample Volume: 150 µL.
- Throughput: Up to 60 samples/hour.
- Data Storage: 200 patient results.
- Display: Large LCD with backlight.
Technical Specifications
- Power Supply: AC 220V/110V ±10%, 50/60Hz.
- Power Consumption: 60W.
- Dimensions: 440mm (H) × 380mm (W) × 350mm (D).
- Weight: 10kg (main unit); 1.5kg (optional auto-sampler).
- Ambient Conditions:
- Temperature: 10°C–30°C
- Humidity: 20%–85% RH (non-condensing).
Detection & Analysis
- Measuring Ranges & Reproducibility (CV%):
- K⁺: 0.50–15.00 mmol/L (≤1.0%).
- Na⁺: 30.0–200.0 mmol/L (<1.0%).
- Cl⁻: 30.0–200.0 mmol/L (≤1.0%).
- Ca²⁺: 0.10–5.00 mmol/L (<2.0%).
- pH: 7.00–9.00 (≤1.0%).
- Li⁺: 0.30–3.00 mmol/L (<3.0%).
Automation & Quality Control
- Calibration: Automatic or on-demand.
- Sampling: Automatic sampling with probe washing to minimize carry-over.
- Fluid System: Simple, reliable tubing and electrode design for minimal maintenance.
Data Management & Connectivity
- Input Interface: Touchscreen for user-friendly operation.
- Output:
- Internal thermal printer.
- RS-232 serial port for external connectivity.
Model Configurations
- EM2800F: K⁺, Na⁺, Cl⁻.
- EM2800A: K⁺, Na⁺.
- EM2800B: K⁺, Na⁺, Cl⁻, HCO₃⁻, AG.
- EM2800C: K⁺, Na⁺, Cl⁻, Ca²⁺, pH.
- EM2800D: K⁺, Na⁺, Cl⁻, Ca²⁺, pH, HCO₃⁻, AG.
- EM2800E: K⁺, Na⁺, Cl⁻, Li⁺.
