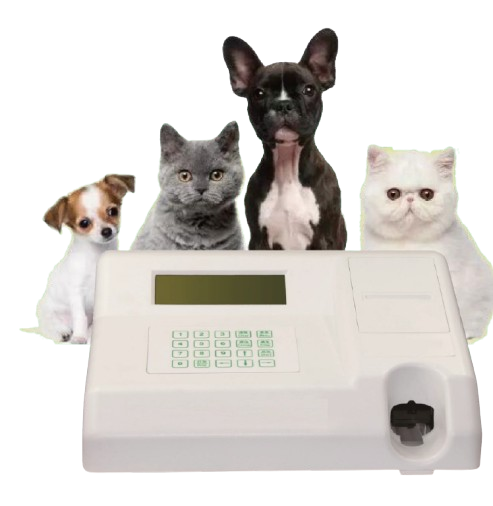

Semi Automatic Urine Analyzer
Model:U-100vet
SKU002804
• Test speed: 60-120 strips/hour
• Wavelength: 470nm,540mm,620nm
• Memory Size: 1000 results, can query the test result according to ID
• Display: 192X64 LCD screen
• Port: Can be connected to urine sediment analysis system and hospital
management system through RS232 port
•Record mode: Thermal printing
• Environment condition: 15-30°C: RH <70%
•Power supply: AC220V / 110V±15%, 50 / 60Hz
• Power: 30VA
• Weight: 3Kg
Price: get
Price
-
U-100 Urine Analyzer
General Specifications
- Measurement Principle: Reflectometry with ultra-high brightness cold light source.
- Light Source: High-luminance, stable white LED.
- Test Parameters: Supports 10, 11, 12, or 14 parameters (depending on strip type).
- Test Speed: 120 samples/hour.
- Data Storage: 2,000 results (searchable by record number).
- Reporting Units: International or conventional units (selectable).
- Display: 240 x 64 dot matrix LCD (37mm x 130mm).
- Printer: Built-in high-speed thermal printer.
- Connectivity: RS232 interface (compatible with LIS/HIS and urine sediment systems).
- Safety Features: Automatic urine leakage prevention to avoid cross-contamination.
Technical Specifications
- Detection Wavelength: 525nm–660nm.
- Power Supply: 50VA (AC compatible).
- Operating Conditions:
- Temperature: 15°C–35°C.
- Humidity: <85%.
- Dimensions: 350mm × 285mm × 140mm (compact design).
- Weight: <3 kg (lightweight and portable).
Test Parameters by Strip Type
Strip Model Test Items URS-10H Urobilinogen, Bilirubin, Ketone, Blood, Protein, Nitrite, Leukocytes, Glucose, Specific Gravity, pH URS-11H URS-10H + Ascorbic Acid URS-12H URS-11H + Microalbumin URS-14 URS-12H + Creatinine, Calcium
Key Features
- Precision Optics: High-luminance LED and advanced reflectometry ensure accurate results.
- High Throughput: Processes 120 tests/hour for efficient workflow.
- Comprehensive Testing: Covers 14 parameters, including glucose, bilirubin, creatinine, and microalbumin.
- User-Friendly Design:
- Intuitive LCD interface.
- Automatic self-detection with calibration strips for troubleshooting.
- Data Integration: RS232 connectivity enables seamless LIS/HIS integration.
- Compact and Portable: Lightweight (<3 kg) with a small footprint for space-constrained labs.
