Introduction to Hematology Analyzers

Hematology analyzers are indispensable diagnostic tools in clinical laboratories, enabling precise and efficient analysis of blood samples to assess patient health. These advanced instruments, often referred to as complete blood count (CBC) machines or hemogram machines, provide critical insights into blood cell parameters, aiding in the diagnosis of various conditions. Eastmed, a leading manufacturer of hematology analyzers, offers state-of-the-art solutions such as the 5-part hematology analyzer and the EM6100 CBC machine. This article explores the working principles, procedures, key parameters, graphical outputs (histograms and scattergrams), and maintenance of CBC analyzers, with a focus on their diagnostic utility for doctors.

How Hematology Analyzers Work: Core Principles

Hematology analyzers employ sophisticated technologies to count and characterize blood cells, forming the backbone of a CBC test:

Flow Cytometry: Utilizes laser-based detection to analyze cell size, granularity, and fluorescence, enabling precise differentiation of cell types, especially in 5-part hematology analyzers.
Impedance (Coulter Principle): Measures changes in electrical resistance as cells pass through a narrow aperture, providing accurate cell counting and sizing for RBCs, WBCs, and platelets.
Fluorescence: Uses fluorescent dyes to stain cells, enhancing the identification of specific cell populations based on their fluorescence intensity.

These technologies, combined with specialized reagents for hematology analyzers (e.g., diluents, lysing agents, and stains), enable comprehensive blood analysis, producing results like cell counts, histograms, and scattergrams.

Procedure of Working

The operation of a CBC test machine involves several critical steps to ensure accurate and reproducible results:

1. Sample Preparation

Blood samples, typically collected in EDTA tubes to prevent clotting, are prepared using a hematology reagents list that includes diluents for cell suspension, lysing agents for WBC isolation, and stains for enhanced detection. Proper preparation is crucial for reliable analysis.

2. Blood Mixing

Samples are thoroughly mixed, either manually or via automated mixers, to ensure homogeneity and prevent cell settling, which could skew results.

3. Blank Test

A blank test, using reagent-only samples, calibrates the analyzer and eliminates background noise, ensuring the accuracy of subsequent measurements.

4. Quality Control (QC) Check

Regular QC checks with control materials verify the analyzer’s performance, confirming that results fall within acceptable ranges. This is essential for maintaining diagnostic reliability.

5. Analysis

The prepared sample is aspirated into the CBC analyzer, where it undergoes analysis using impedance, flow cytometry, or fluorescence. The system counts cells, measures parameters, and generates graphical outputs like histograms and scattergrams, which are critical for diagnosis.

Types of Differential Analysis

Hematology analyzers are categorized by their ability to differentiate white blood cells (WBCs):

3-Part Differential: Identifies lymphocytes, monocytes, and granulocytes. Suitable for routine screening.
5-Part Differential: Distinguishes neutrophils, lymphocytes, monocytes, eosinophils, and basophils, offering greater detail for complex diagnostics. Eastmed’s 5-part hematology analyzer excels in this regard.
6-Part Differential: Includes rare cell types like immature granulocytes, used in specialized settings for advanced diagnostics.

Key Parameters in CBC Analysis

A complete blood count machine measures various parameters to provide a comprehensive blood profile:

WBC-Related Parameters

Total WBC Count: Quantifies overall white blood cells, indicating immune status.
Differential Count: Measures the percentage of each WBC type (e.g., neutrophils, lymphocytes).
Flags: Highlights abnormal cells, such as blasts in leukemia, prompting further investigation.

RBC-Related Parameters

RBC Count: Counts red blood cells, assessing oxygen-carrying capacity.
Hemoglobin (HGB): Measures the oxygen-transporting protein in RBCs.
Hematocrit (HCT): Represents the volume of RBCs in blood.
Mean Corpuscular Volume (MCV): Indicates average RBC size, critical for anemia diagnosis.
Red Cell Distribution Width (RDW): Reflects variability in RBC size, aiding in identifying anisocytosis.

Platelet Parameters

Platelet Count: Quantifies platelets, essential for clotting.
Mean Platelet Volume (MPV): Indicates average platelet size, relevant for clotting disorders.

Understanding Histograms and Scattergrams

Graphical outputs from CBC analyzers—histograms and scattergrams—are powerful tools for visualizing blood cell distributions and diagnosing diseases. Below, we present examples of these outputs for normal and pathological states, with diagnostic analyses to aid doctors’ study.

What is a Histogram?

A histogram displays the size distribution of blood cells (RBCs, WBCs, or platelets), plotting cell count (y-axis) against cell size (x-axis, in femtoliters for RBCs). Generated by impedance or flow cytometry, histograms are critical for assessing cell uniformity.

Normal RBC Histogram

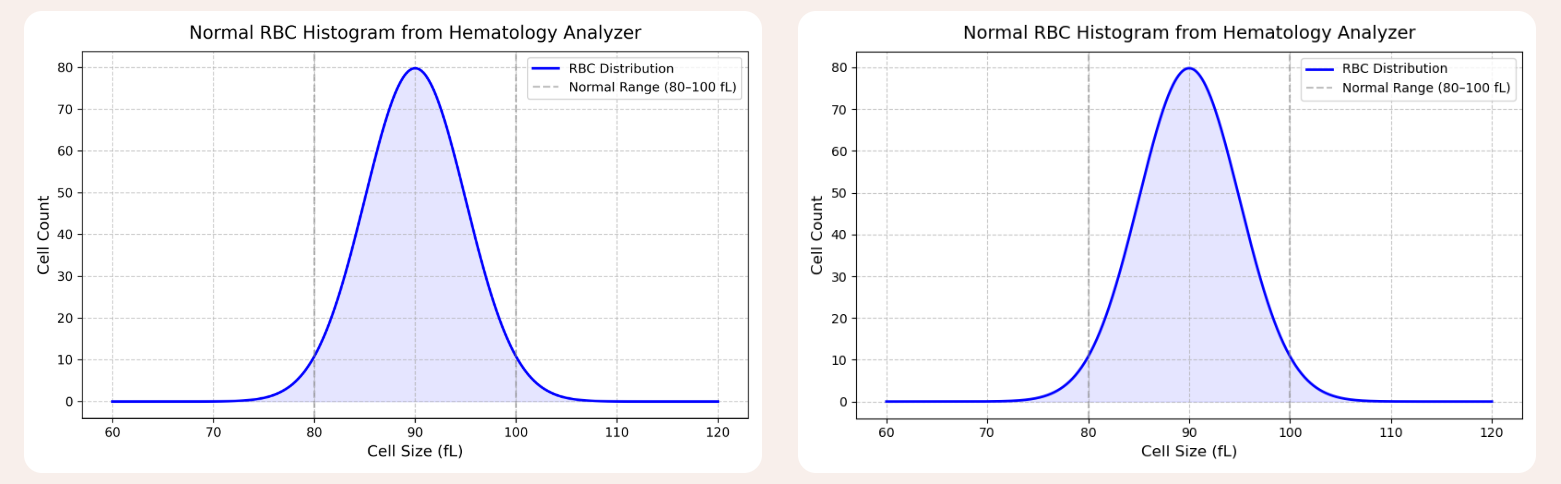

Caption: Normal RBC Histogram from a hematology analyzer, showing a symmetrical bell-shaped curve centered at 90 fL, indicating healthy RBC size distribution.

Appearance: A smooth, bell-shaped curve centered at ~90 fL (normal MCV), with a narrow spread (RDW ~11.5–14.5%), indicating uniform RBC size.
Diagnostic Analysis: This histogram, produced by a CBC test machine, confirms a healthy RBC population, ruling out anemias or other disorders. The symmetrical curve aligns with normal MCV (80–100 fL) and RDW, ensuring optimal oxygen transport. Deviations (e.g., left or right shifts) would suggest microcytic or macrocytic anemia, respectively.

RBC Histogram: Microcytic Anemia (Iron Deficiency)

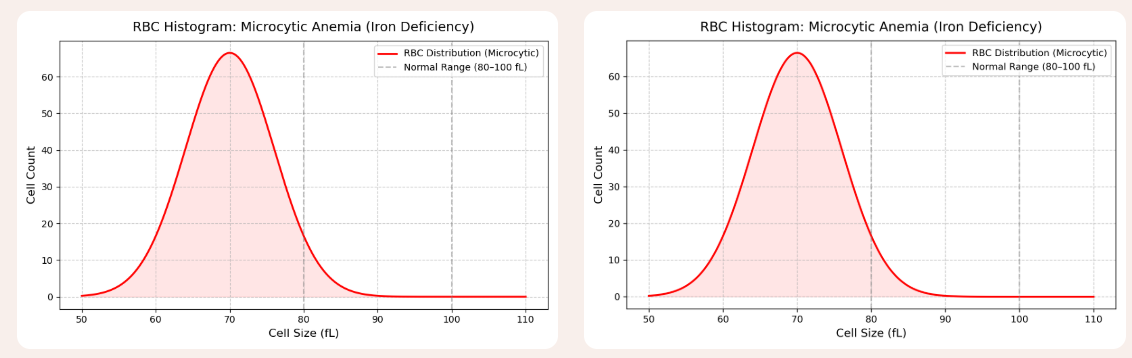

Caption: RBC Histogram for Microcytic Anemia, showing a left-shifted peak at 70 fL, indicative of smaller RBCs in iron deficiency.

Appearance: The curve is shifted left, peaking at ~70 fL (MCV < 80 fL), with a slightly wider spread (elevated RDW), reflecting anisocytosis.
Diagnostic Analysis: This histogram, generated by a 5-part hematology analyzer, indicates microcytic anemia, often due to iron deficiency or thalassemia. The smaller RBCs reduce oxygen-carrying capacity, leading to symptoms like fatigue. Doctors should confirm with serum ferritin or hemoglobin electrophoresis and consider iron supplementation.

RBC Histogram: Macrocytic Anemia (Vitamin B12 Deficiency)

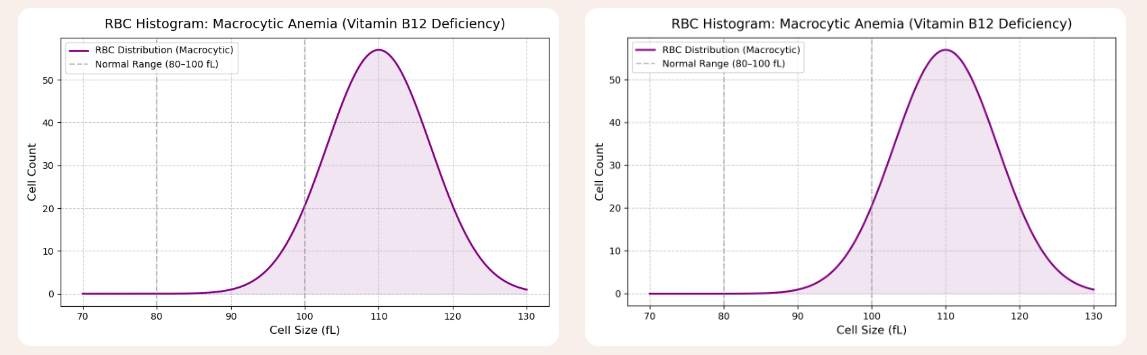

Caption: RBC Histogram for Macrocytic Anemia, with a right-shifted peak at 110 fL, suggesting larger RBCs in vitamin B12 deficiency.

Appearance: The curve is shifted right, peaking at ~110 fL (MCV > 100 fL), with a wider spread (elevated RDW), indicating variability in RBC size.
Diagnostic Analysis: This pattern, detected by a CBC analyzer, points to macrocytic anemia, commonly caused by vitamin B12 or folate deficiency. Oversized RBCs may have reduced functionality, leading to neurological symptoms or fatigue. Doctors should order B12/folate levels and consider supplementation or further tests for pernicious anemia.

What is a Scattergram?

A scattergram is a two-dimensional plot generated by flow cytometry, plotting cells based on forward scatter (FSC, cell size) and side scatter (SSC, granularity). It is ideal for WBC differentiation in advanced hematology analyzers.

Normal WBC Scattergram

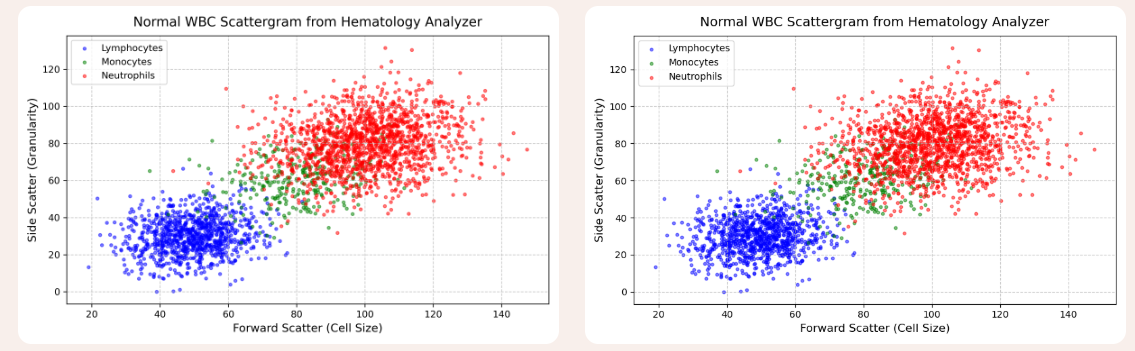

Caption: Normal WBC Scattergram from a 5-part hematology analyzer, showing distinct clusters for lymphocytes, monocytes, and neutrophils.

Appearance: Three distinct clusters: lymphocytes (blue, small size, low granularity, ~50,30), monocytes (green, medium size/granularity, ~80,60), and neutrophils (red, larger size, high granularity, ~100,80).
Diagnostic Analysis: This scattergram, produced by a CBC test machine like Eastmed’s EM6100 CBC machine, confirms a balanced WBC differential, indicating a healthy immune system. Clear cluster separation ensures accurate quantification of cell types, ruling out infections or leukemias. Any overlap or additional clusters would warrant further investigation.

WBC Scattergram: Acute Lymphoblastic Leukemia (ALL)

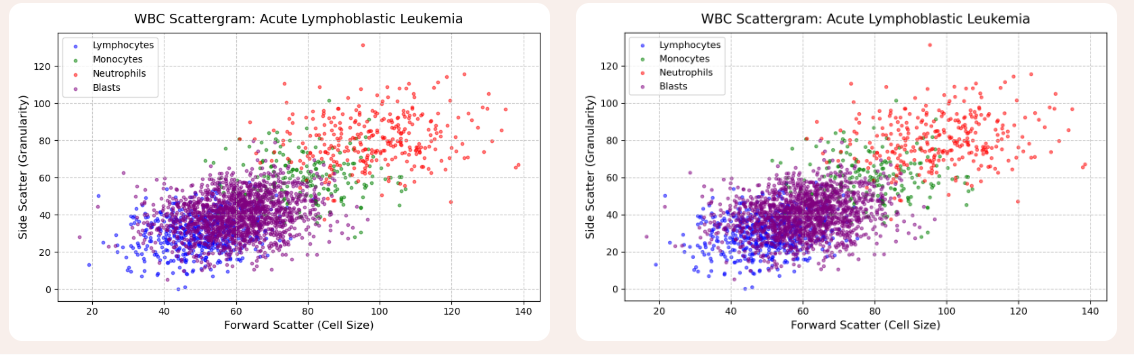

Caption: WBC Scattergram for Acute Lymphoblastic Leukemia, showing a prominent blast cluster indicating abnormal cells.

Appearance: Reduced density of normal WBC clusters (lymphocytes, monocytes, neutrophils) with a dominant purple cluster (blasts, ~60,40), slightly larger and more granular than lymphocytes.
Diagnostic Analysis: The presence of blasts, flagged by a hematology analyzer, suggests leukemia, requiring urgent bone marrow analysis. This scattergram aids doctors in identifying ALL, guiding treatments like chemotherapy. The abnormal cluster’s prominence indicates a high blast count, critical for prognosis.

WBC Scattergram: Bacterial Infection (Neutrophilia)

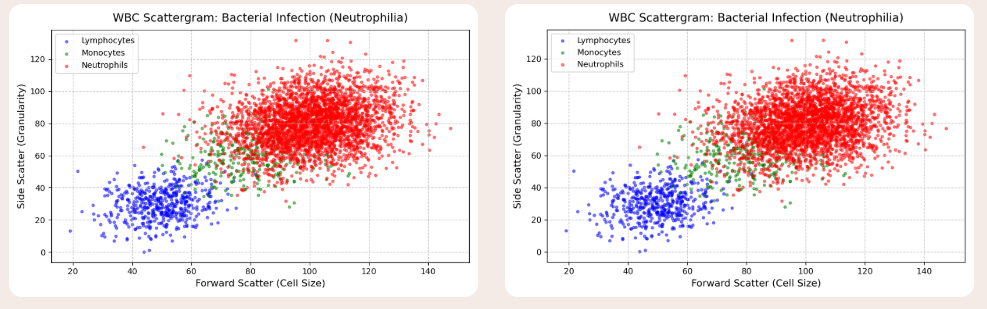

Caption: WBC Scattergram for Bacterial Infection, showing a dense neutrophil cluster due to neutrophilia.

Appearance: A significantly denser neutrophil cluster (red, ~100,80) overshadows normal lymphocyte and monocyte clusters, indicating elevated neutrophil counts.
Diagnostic Analysis: This pattern, detected by a CBC analyzer, suggests neutrophilia, often due to bacterial infections or inflammation. Doctors should investigate infection sources (e.g., blood cultures) and consider antibiotics. The scattergram’s clear visualization of neutrophil dominance aids rapid diagnosis.

Anti-Clog Technology

Modern CBC test machines, such as Eastmed’s EM6100 CBC machine, feature anti-clog technology to prevent blockages in apertures or tubing. Automated cleaning cycles and specialized reagents for hematology analyzers maintain smooth operation, ensuring consistent histogram and scattergram output, even for high-throughput labs.

Maintenance of Hematology Analyzers

Proper maintenance is critical for accurate results:

Daily Maintenance: Perform blank tests and cleaning cycles to remove debris, leveraging anti-clog technology.
Regular Calibration: Use control samples to calibrate the analyzer, ensuring alignment with reference ranges.
Reagent Management: Monitor and replace hematology reagents (e.g., diluents, lysing agents) to maintain performance. Use manufacturer-recommended reagents for compatibility.
Deep Cleaning: Conduct periodic deep cleaning to prevent clogs and ensure reliable flow cytometry data.
Software Updates: Keep the analyzer’s software updated to support new diagnostic protocols and maintain accuracy.

Clinical Utility for Doctors

Hematology analyzers provide doctors with actionable insights through histograms and scattergrams:

Diagnostic Precision: Normal histograms and scattergrams confirm healthy blood profiles, while abnormal patterns (e.g., left-shifted RBC histograms or blast clusters) guide targeted investigations.
Rapid Screening: Automated analysis by CBC analyzers enables quick identification of conditions like anemia, leukemia, or infections, streamlining patient care.
Monitoring and Follow-Up: Serial CBC tests track disease progression or treatment response, with graphical outputs providing visual trends.
Integration with Clinical Data: Combining histogram/scattergram data with patient history and other tests (e.g., ferritin for microcytic anemia) enhances diagnostic accuracy.

Eastmed’s 5-part hematology analyzer and EM6100 CBC machine empower clinicians with reliable, high-resolution data, supporting evidence-based decision-making.

Conclusion

Hematology analyzers are transformative tools in clinical diagnostics, providing detailed blood cell analysis through advanced technologies like flow cytometry and impedance. By generating histograms and scattergrams, CBC test machines enable doctors to diagnose conditions ranging from anemia to leukemia with precision. Eastmed’s cutting-edge solutions, including the 5-part hematology analyzer and EM6100 CBC machine, deliver reliable results, supported by anti-clog technology and optimized hematology reagents. For more information on Eastmed’s innovative hematology analyzers, visit east-medical.com. These tools, combined with their graphical outputs, are essential for doctors studying and diagnosing hematological disorders, ultimately improving patient outcomes.
