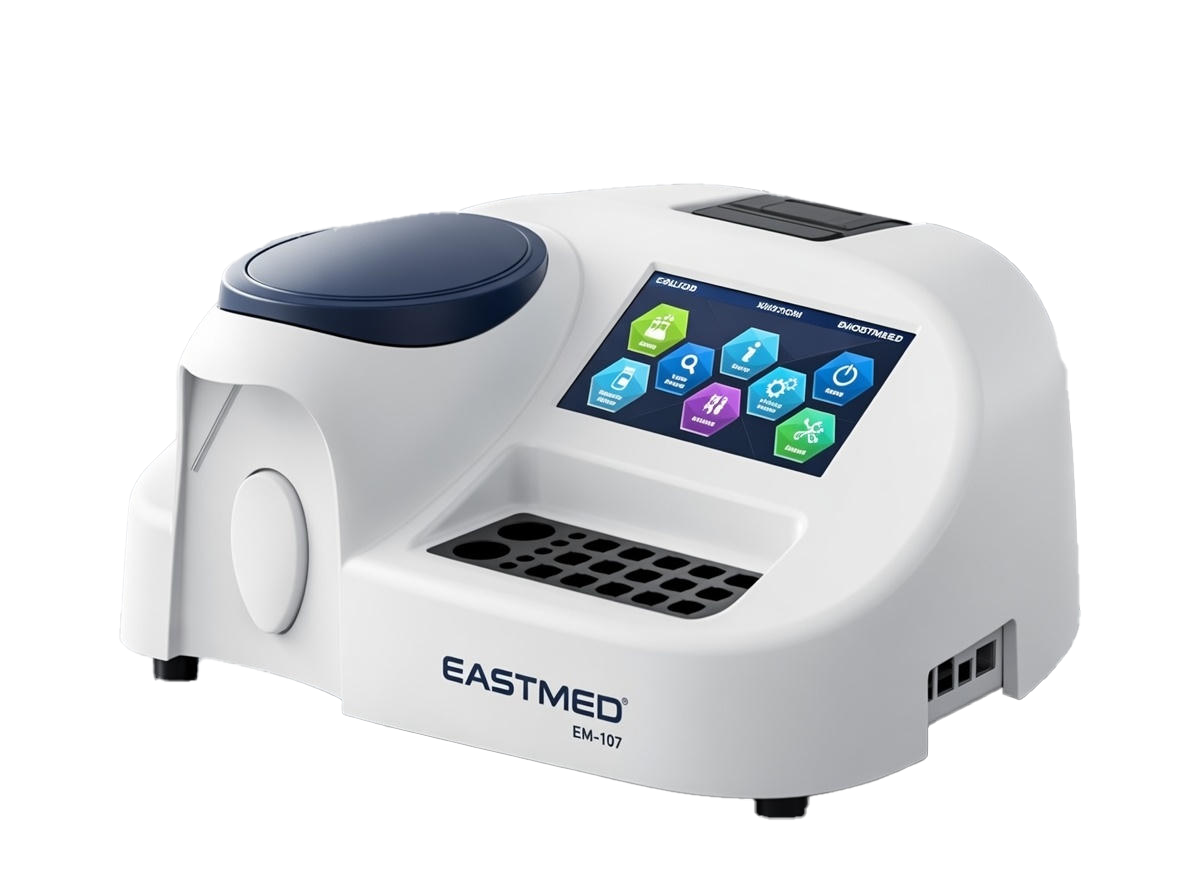

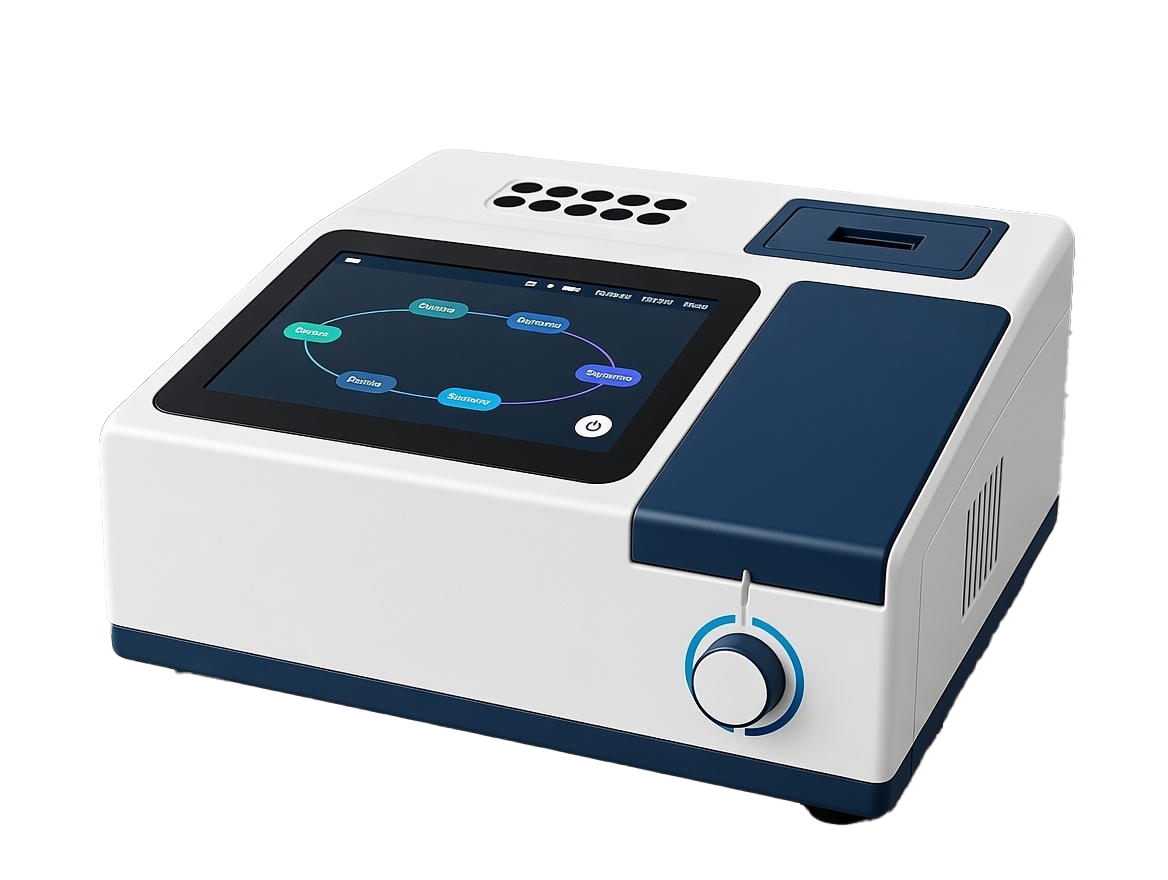

semi auto chemistry analyzer
The Advanced Semi-Automated Clinical Chemistry Analyzer offers end point, kinetics, and absorbance methods with a 7" adjustable touch LCD screen. It features an optical system with 7 filters (340-670 nm), Peltier temperature control, memory for 100,000 results, and a halogen-tungsten lamp. Benefits include air purge to prevent carryover, real-time absorbance curve display, multi-standard calibration, and easy operation with minimal maintenance.
EM-168 Biochemistry Analyzer Overview
Core Features
-
Optical System:
-
8 wavelengths (340, 405, 505, 546, 578, 620, 670nm + 1 optional filter).
-
Halogen lamp (6V/10W) for consistent light output.
-
-
Precision Performance:
-
Resolution: 0.001 Abs.
-
Photometric range: 0.000–3.000 Abs.
-
Stability: <0.005 Abs/hour drift.
-
Repeatability: CV <0.5%.
-
-
Measurement Flexibility:
-
Supports endpoint, kinetics, two-point, and absorbance modes.
-
-
Temperature Control:
-
Peltier-based system with settings for 25°C, 30°C, and 37°C.
-
-
Efficient Sample Handling:
-
32µL quartz flow cell.
-
Low carry-over (<1%) between samples.
-
User Convenience
-
Data Management:
-
Stores 200+ test programs and 100,000+ results.
-
Built-in thermal printer and multiple connectivity options (USB, RS-232, Ethernet, SD card).
-
-
Durable Design:
-
Operates reliably in environments up to 40°C.
-
Compact dimensions (420 × 310 × 152 mm) and lightweight (7 kg).
-
Applications
-
Ideal for clinical labs, hospitals, and research facilities requiring accurate, reproducible biochemistry analysis.
EM-168 Semi-Auto Biochemistry Analyzer – Features & Specifications
| Category | Key Specifications |
|---|---|
| Optical System | 8-Wavelength Filters: 340, 405, 505, 546, 578, 620, 670nm + 1 optional Light Source: Halogen 6V/10W |
| Performance | Resolution: 0.001 Abs Photometric Range: 0.000–3.000 Abs Stability: <0.005 Abs/hour drift Repeatability: CV <0.5% |
| Measurement Modes | Endpoint, Kinetics, Two-point, Absorbance |
| Temperature Control | Peltier-Based: Precise control at 25°C, 30°C, 37°C |
| Sample Handling | Low Carry-over: <1% Flow Cell: 32µL quartz |
| Data Management | Memory: 200+ test programs, 100,000+ results Connectivity: USB, RS-232, Ethernet, SD card Printer: Built-in thermal |
| User Interface | TFT LCD Display Windows OS (EM-16B model) with touchscreen option |
| Durability | Operates up to 40°C ambient temperature |
| Dimensions | 420(L) × 310(W) × 152(H) mm Weight: 7 kg |
| Item | Photo | Qty | Action |
|---|---|---|---|
| No accessories available | |||
L|W|H：58.0000cm (L) × 42.0000cm (W) × 35.0000cm (H)
G.W：14.0000Kg
N.W：0.0000Kg
